Gas Leakage Alarm 가21-30
Gas Leakage Alarm KF-A220V
| Type |
Stand-alone gas alarm |
| Model |
KF-A220V |
| Power |
AC 220V |
| Electricity consumption |
2.0W |
| Alarm output |
WHEN ALARMED-DC 12V / contact signal : NO, NC, COM |
| Operating temperature |
-20~40℃ |
| Detection method |
Diffusivity and contact combustion |
| Applicable gas |
LPG, LNG |
| Alarm concentration |
LPG 0.05~0.45% / LNG 0.05~1.25% |
| External dimension |
80(W)×120(H)×45(D) bracket included |
| Weight |
300g |

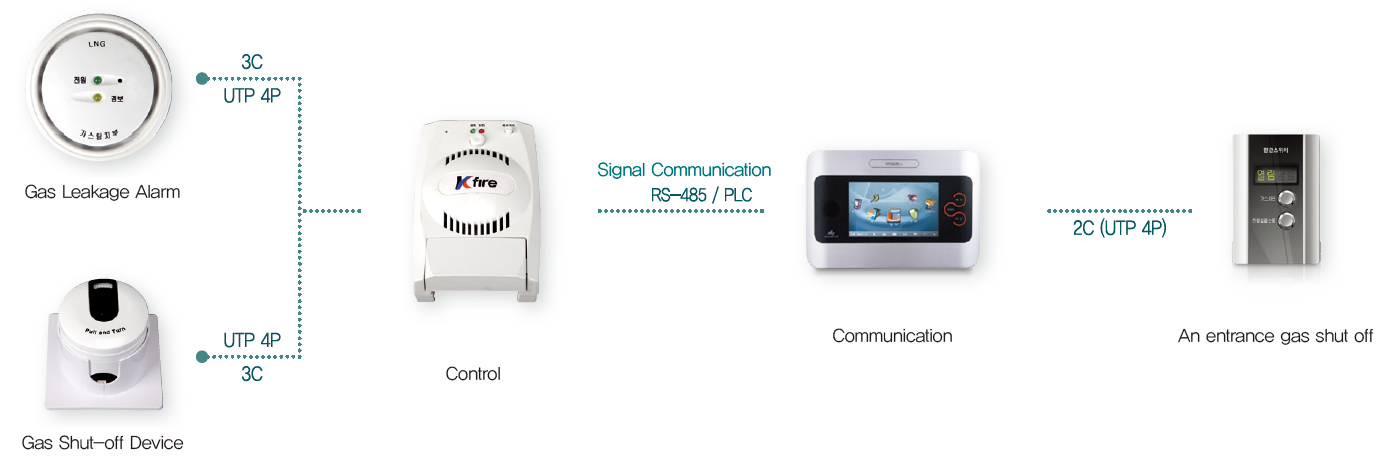

Gas Leakage Alarm and Shut-Off Device HK-800

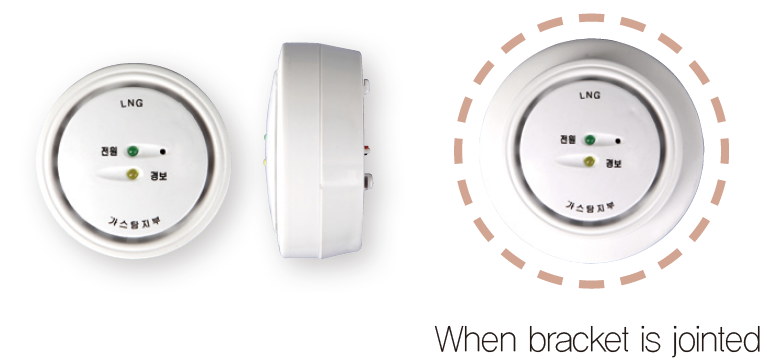

Gas Leakage Alarm Device HKA-800
| Type |
Stand-alone |
| Model |
HKA-800 |
| Power Supply |
DC 5V/12V |
| Power Consumption |
1.7W(Normal Time) / 1.8W(During Alarming) |
| Alarm output |
WHEN ALARMED-DC 12V / Contact Point Signal : NO, NC, COM |
| Operating temperature |
-20~40℃ |
| Detection method |
Diffuse & Contact Combustion |
| Applicable gas |
LPG, LNG |
| Alarm concentration |
LPG 0.05~0.45% / LNG 0.05~1.25% |
| DimensionWithout bracket |
61Ø×21(D)
80Ø×32(D) With bracket |
Control HKL-800
| Power Supply |
220V |
| Shut-off Part Output |
DC 12V |
| Button Function |
Open, Closed, Return/Stop |
| Method |
Limit switch method |
| Dimension |
79(W)×128(H)×45(D) |
| Alarm Input |
DC 12V |
| Operating Temperature |
-10~40℃ |
| Used Shut-off Device |
HKS-220 |
| Weight |
311g |
| Communication Function |
PLC / RS-485(option) |
Shut-off Device HKA-800
| Type |
Gear operated type |
| Attachment Type |
Ball valve direct connecting |
| Connection Wiring |
CVV or VCT or UTP 2P or TIV 0.5×3c. Control Wire |
Gas Leakage Alarm Device
Ventilation Sensor

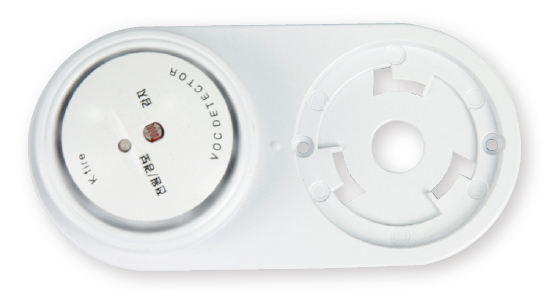

Detachable ventilation sensor HKVOC-100
Automatically detects and ventilates odors or gases generated during cooking.
Detector HKV-100
Control unit HKP-100
| Type |
Detachable Ventilation Sensor |
| Model |
HLVOC-100 |
| Power |
AC 220V/60Hz |
| Sensing gas |
Alcohol, carbon monoxide, carbon dioxide, cigarette smoke, ammonia, various smells, etc |
| Power consumption |
1W |
| Usage temperature |
-10~50℃ |
| Interlocking |
Range Hood or Ventilation Fan |
| LED display |
Blue LED-Power, Red LED-Relay operation |
| Installation |
Kitchen in the house |
| Initial Stabilization Time |
3Minutes |
| Operating concentration |
Approximately 20 ppm based on LNG |

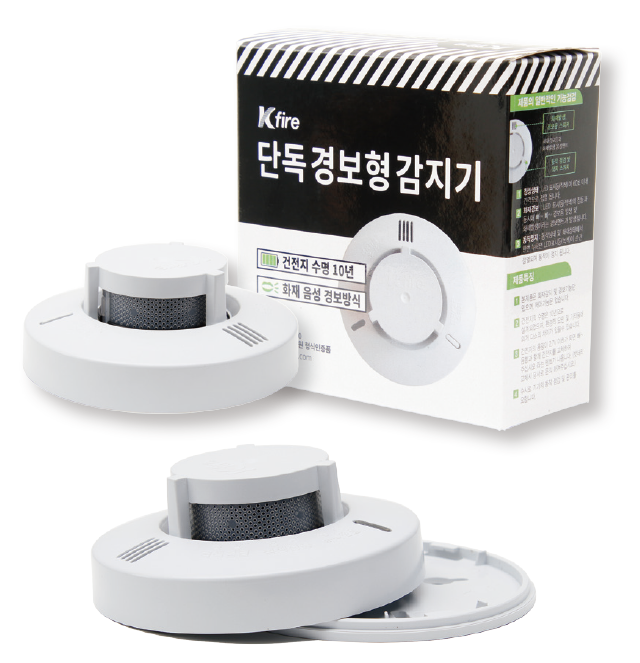

Smoke Alarm (Stand Alone Type)
Create the best product with accumulated technology and experience
No need to replace battery for 10 years after purchase. It lasts for 10 years.
Detect FIRE with a VOICE alarm
Compare and check before purchase.
-

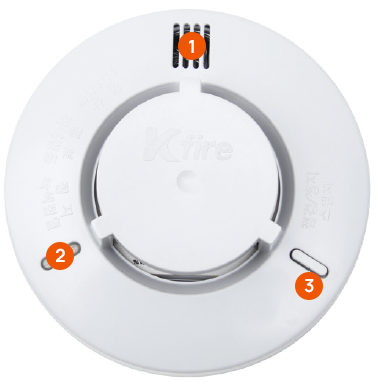

1
Fire detection alarm speaker
- "Beep" sound alarms in 85 db when fire occur
-
2
LED MODE
- Nomarl Mode: RED light flickers
- Fire Detected Mode:Constant RED lights
- Pause Mode: GREEN light flickers
-
3
Motion Inspection / Stop Switch
- "Orange Light" will show up for 5 minute and after 5 minute it will outomatically start detection mode.
- When the stop button is pressed in the fire alarm state, the indicator lamp immediately locks and stops operating.
- Orange light will show up for 5minutes and after it will start detecting.
| Model |
Stand Alone Alarm Device / HK-SD-100 |
| Certification No. |
감18-10 |
| Type |
DC3V, Normal, Restorable, Stand Alone |
| Power Source |
Lithium Battery DC 3V, 1600mA, CR-123A |
| Energy Consumption |
Stand-by 2.7 MAh, Alarm 210 MAh |
| Operating Temperature |
-10~50℃ |
| Sound Output |
Smoke Alarm 85 db / Battery Replacement 75 db |
| Installation Area |
Bed Room, Living Room, Kotchen, Hall Ways and ETC |

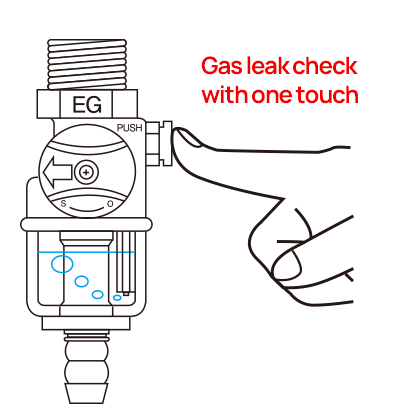

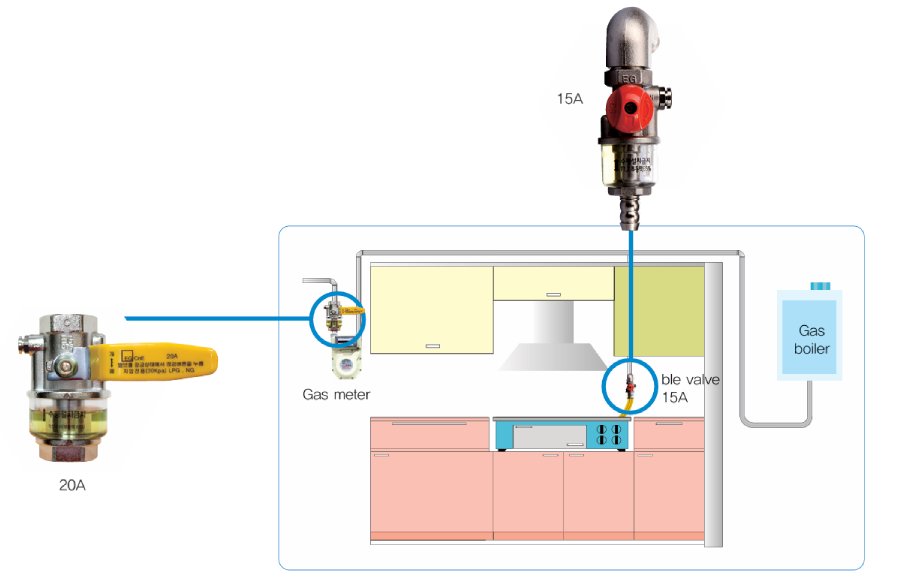

Gas Leakage Check Device(Bubble Valve)
- Construction standards (KGS FU511) access door and install gas leak check device obligations from May 25, 2011
- Gas leak check facility cock Fuse manufacture, inspection standards : KGS S
- Gas leak check valve piping for facilities manufacturing, technology, testing standards : KGS S
Bubble Valve is a necessary which helps safe gas use.

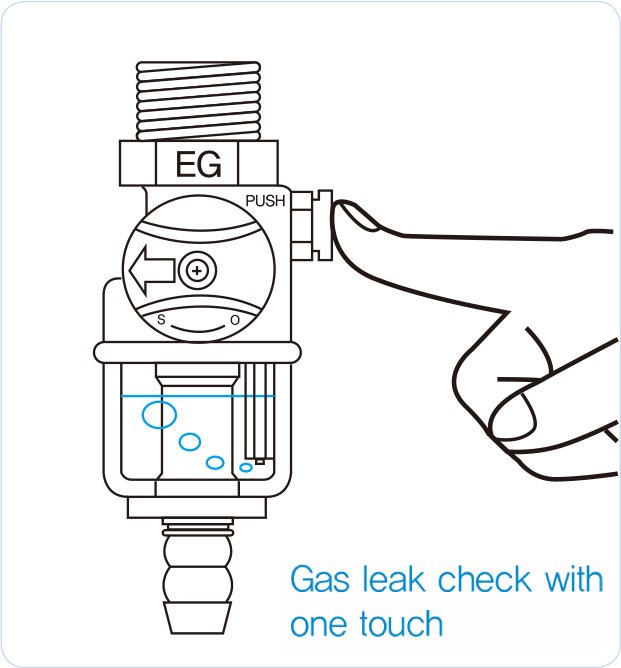

You can see the bubble and check whether there is any gas leaks if you press the checking when there is gas leaking from the pipes, old valves, and own flaws.
Features
- You can check the gas leakage occasionally without using soap bubbles.
- Easy to find changing time for the fuse cock and valve.
- The installing method is the same as the existing fuse cock or valve, so it is easy to install and change.
- Can be used ar houses, industries, cars, ships, and gas containers.
Things to note when you check the gas leaksge
- Stop all the use in the house.
- Press the checking lever softly while closing the mid-way valve.
- When the gas leaks : The bubble forms within one second, so you can check with your eyes easily.
- Normally : There will be no response.
How to use
Check gas leak by pressing the button. If the button is pressed check the bubbles, Please contact the management office.
CO Gas Leakage Alarm

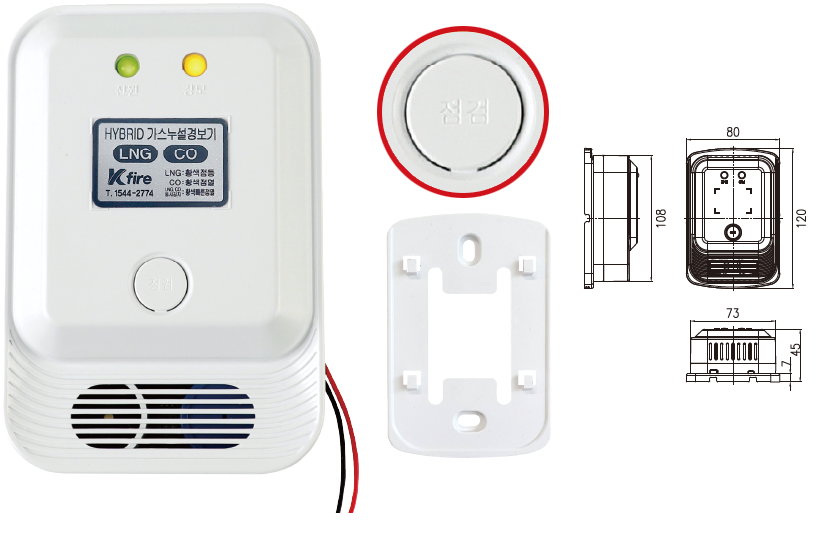

CO Gas Leakage Alarm (Composite Type)
Inspection method: It is normal if the orange light turns on after 5 seconds of alarm sound when the check button is pressed.
| Power Supply |
AC 220V |
| Weight |
190g |
| Usage temperature |
-20℃~40℃ / RH 95% or less |
| Display |
- Power LED: Green LED On
- GAS detection: Yellow light/ CO detection: Yellow
- Flashing (0.5 seconds) GAS&CO detection: Yellow
- Flashing (0.25 seconds)
|
| Sound Output |
Alarm on: Buzzer noise |
| Signal Output |
Contact output : open collector |
| Fixed method |
Fixing the Bracket on wall
Easy installation (Magnet insertion of bracket: Can attach boiler body) |
| Gas |
Mono Oxide(CO), LPG/LNG |
| Gas Sensing System |
Electrochemical / Catalytic combustion |
| Initial stabilization |
30seconds |
| PCB |
2Layer/FR4 |
| Dimension |
72(W)×108(H)×45(D) with bracket |

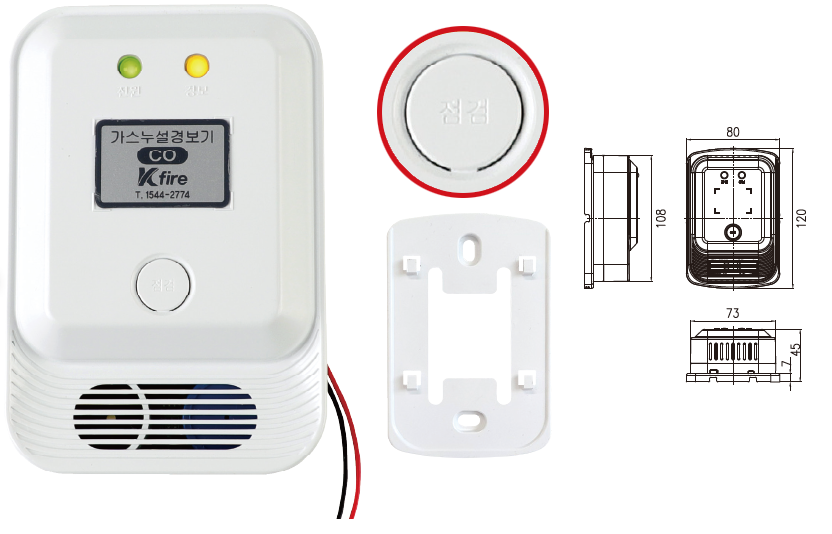

CO Gas Leakage Alarm (AC Type)
Inspection method: It is normal if the orange light turns on after 5 seconds of alarm sound when the check button is pressed.
| Type number |
가21-64 |
| Power Supply |
AC 220V |
| Weight |
185g |
| Usage temperature |
-20℃~40℃ / RH 95% or less |
| Display |
- Power LED: Green
- CO Detection: Yellow
|
| Sound Output |
Alarm on: Buzzer noise |
| Signal Output |
Contact output : open collector |
| Fixed method |
Fixing the Bracket on wall
Easy installation (Magnet insertion of bracket: Can attach boiler body) |
| Gas |
Mono Oxide(CO) |
| Gas Sensing System |
Electrochemical |
| Initial stabilization |
20seconds |
| PCB |
2Layer/FR4 |
| Dimension |
72(W)×108(H)×45(D) with bracket |
CO Gas Leakage Alarm (composite type / AC type) Detailed Information

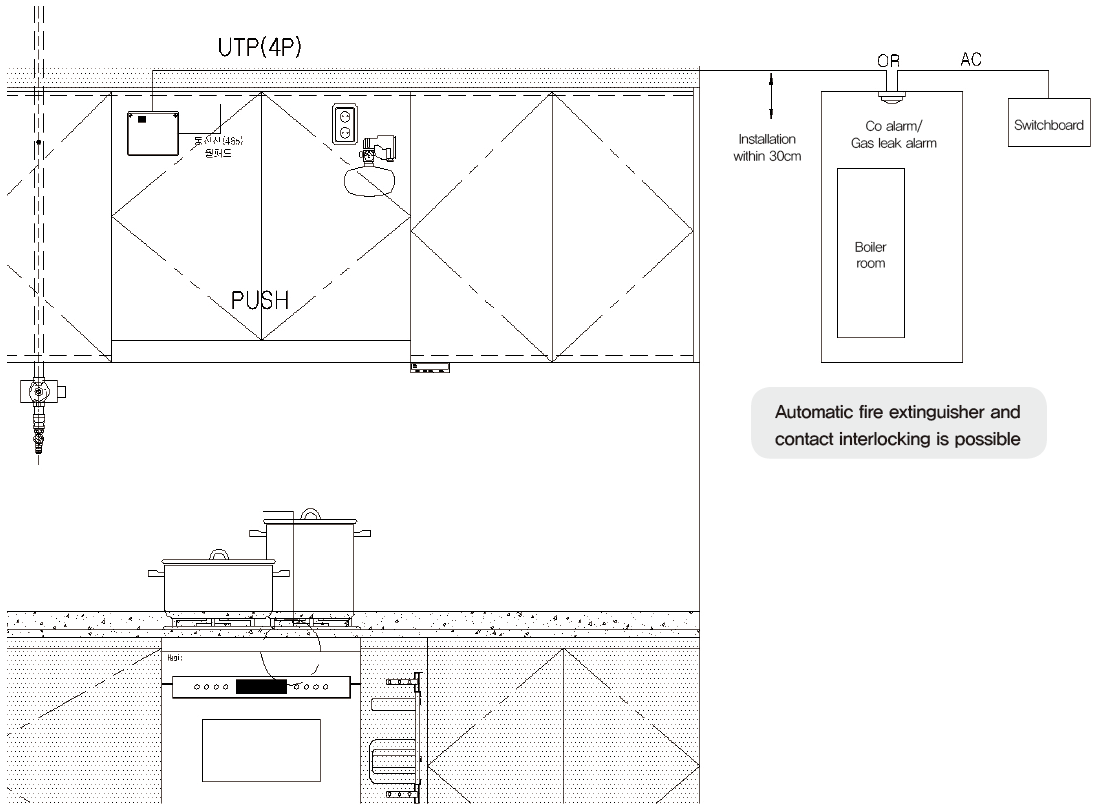

CO Gas Leakage Alarm Construction Plan

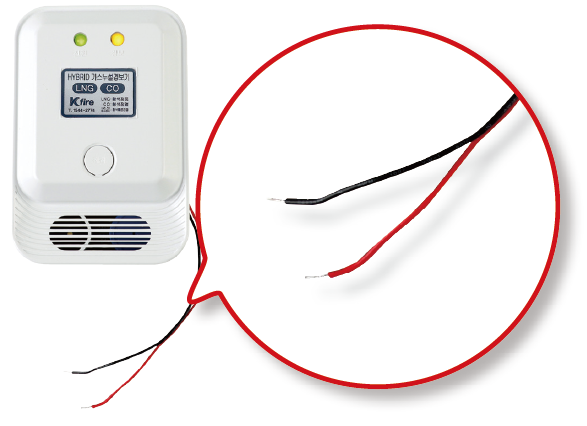

Product Interlocking Method
Powerless Contact System
The powerless method outputs a signal when connecting a line to either side.
- It works with the automatic fire extinguisher with the powerless contact output.
- In the powerless contact method, two lines (black, red) are usually open, and when an alarm occurs, the contact point is short-circuited to output a signal.
CO Gas Leakage Alarm

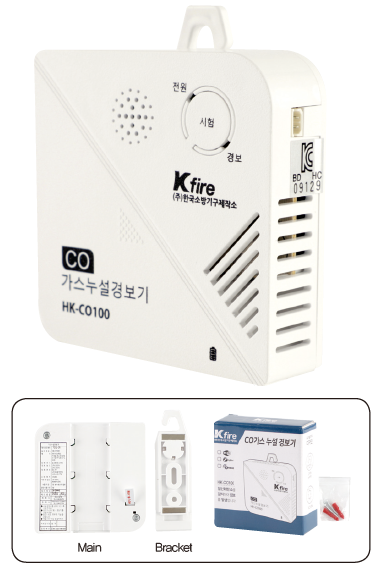

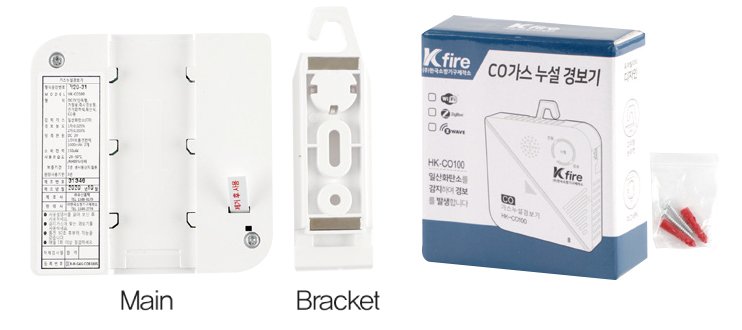

CO Gas Leakage Alarm HK-CO100
CO Alarm Battery Type
AA Lithium Battery 1.5V 2EA included
- Bracket fixing mount type (magnet type / ring fixed type)
- Self-operation test possible (test button applied)
- 5 years of battery life / 10 years of sensor life
- Battery replacement and alarm voice function
- Using a high-performance electrochemical sensor
| Model |
CO Alarm / HK-CO100 |
| Type Approval |
가-20-31 |
| Power |
AA size 1.5V lithium battery 2PCS (3.0V) |
| Weight |
145g(with battery) |
| Used Environment |
-20℃~50℃ / RH 95% less |
| Display |
- Power LED: Flashing green LED
- Alarm LED: CO gas detection (250 ppm or more) illuminated
|
| Sound Output |
- Alarm: Voice guidance and alarm sound
- Battery Low Power: Battery replacement voice notification
|
| Output Signal |
Point of contact |
| Installation |
Mount the Bracket on Wall
Easy installation (Magnet insertion of bracket : boiler body can be attached) |
| GAS |
Mono Oxide (CO) |
| Gas Sensing System |
Electro chemical formula |
| Initial stabilization |
30seconds |
| PCB |
2 Layer FR4 |
| Size |
90mm(W)Ⅹ90mm(H)Ⅹ25mm(D) |

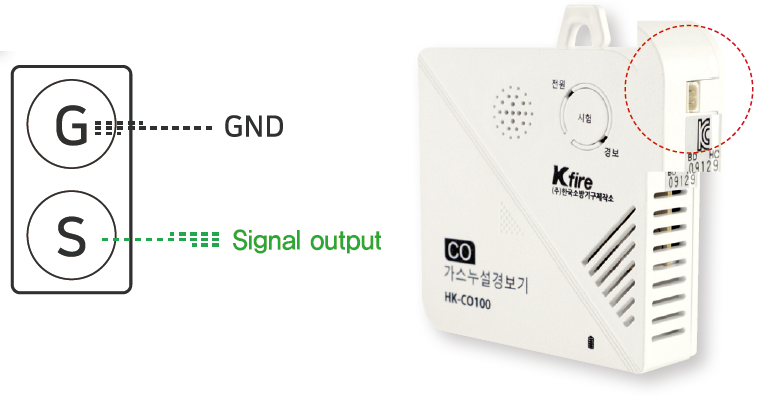

Product Interlocking Method
GND Contact System
- A contact terminal is located on the right side to output a contact signal when an alarm occurs.
- Contacts can use the GND method.
- In the GND contact method, the GND signal is output to the signal terminal at the time of the alarm, and normally, it is opened.
Gas Timer
Gas Timer Components and Specification
GB-100S
| Name |
g-block |
| Model |
GB-100S |
| Type |
Voice |
| Blocking method |
Drive motor |
| Cut-off time |
With in 5seconds |
| Power |
AA Battery 4PCS |
| Size |
70Ⅹ130Ⅹ69 (WⅩHⅩD) |
| Fire detection temperature |
60℃ |
| Quality Assurance Period |
3years |
Precautions
-
1
Do not leave the site when operating the gas timer.
-
2
Use it according to its intended use and do not use it for any other purpose.
-
3
When replacing batteries, replace the 4 batteries as a set.
-
4
Some gas valves may not be installed, so do not install them excessively.
-
5
Replacement of the gas valve should be requested to the city gas area management office.

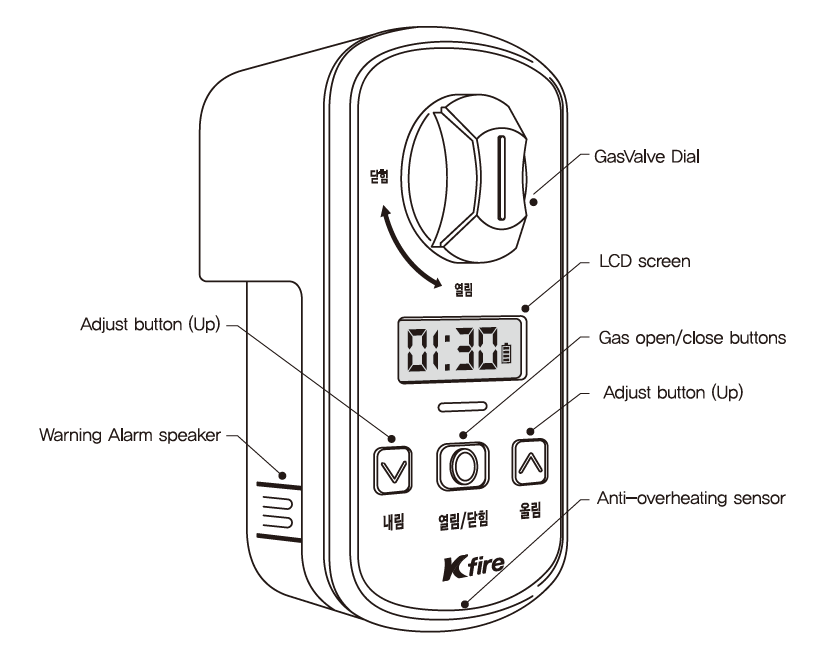

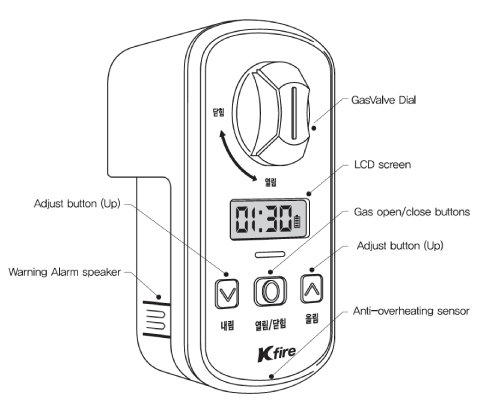

Name and functions
-
1
Gas open/close buttons - Operate the opening and closing of the gas valve.
-
2
Timer adjustment button (down) - to reduce the set time.
-
3
Timer adjustment button (up) - to increase the set time.
-
4
Liquid crystal display - Displays the set time and the LED flashes during the open/close operation.
-
5
Warning sound speaker - Provides status of the valve during open and close operation.
-
6
Anti-overheating sensor - detects ambient temperature and shuts off the valve.

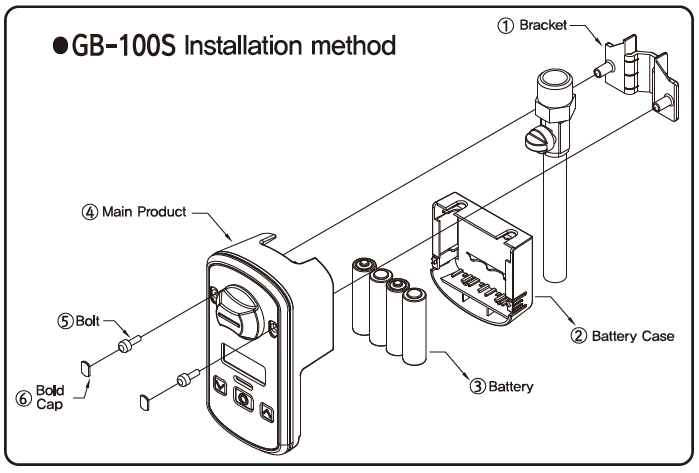

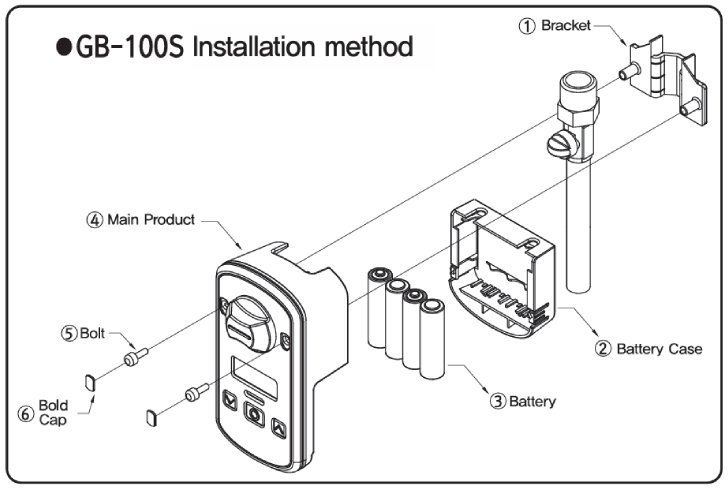

GB-100S Installation method
-
1
Place the gas valve in the closed state.
-
2
Place the gas timer in a closed state.
-
3
Place the bracket ()) behind the gas valve.
-
4
Place the gas timer on the gas valve and connect it with the bracket using the bolts provided.
-
5
Put the battery in and use the open/close buttons to check if the gas timer is working properly.
-
6
If it does not operate normally
Installation
-
1
Power is off when the valve is closed.
-
2
When the open button is pressed once, the set time of use will be displayed in 20 minutes with the beep and the valve will be open.
-
3
You can increase the set time by 5 minutes by pressing the button.
-
4
Press the down button to reduce the set time by one minute.
-
5
Pressing the open/close button once after using the gas will cause the valve to be closed with a beep.
-
6
The temperature sense function is built in the product, so when the temperature around the product reaches 60 degrees, the valve is automatically closed to cut off the gas supply.
-
7
After the set time has elapsed, the valve is automatically closed with a beep and the gas timer is in standby.
