Escape Ladder EG-100

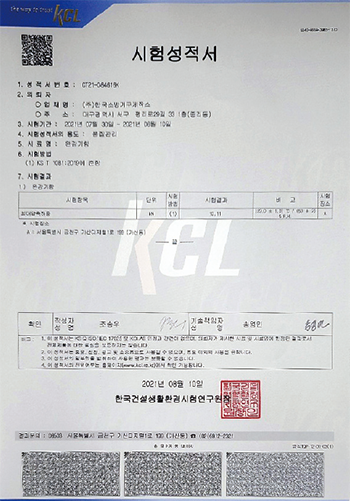

Type approval and certification products of the Korea Fire Industry Research & Extension Services
Appropriate products for the disaster prevention testing lab oratory

Classification
Division Specifications and Names Remarks
Storage case Material Stainless Steel(STS) main body1.2t
POSMAC 3.0 main body1.5t

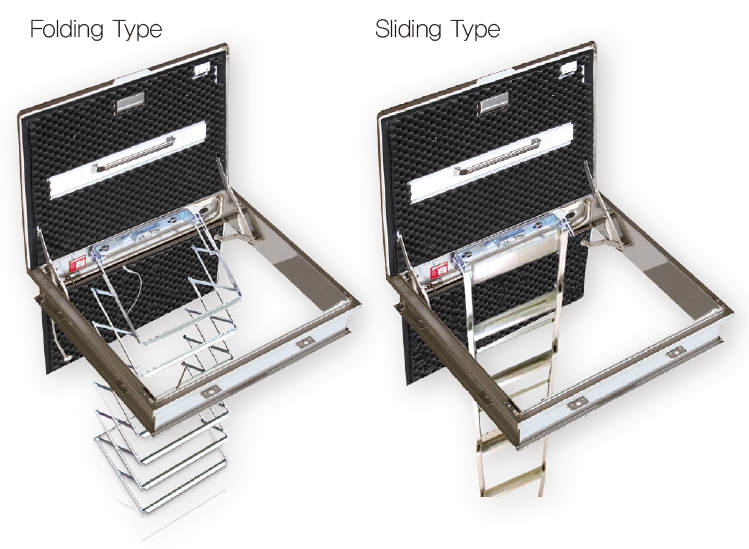

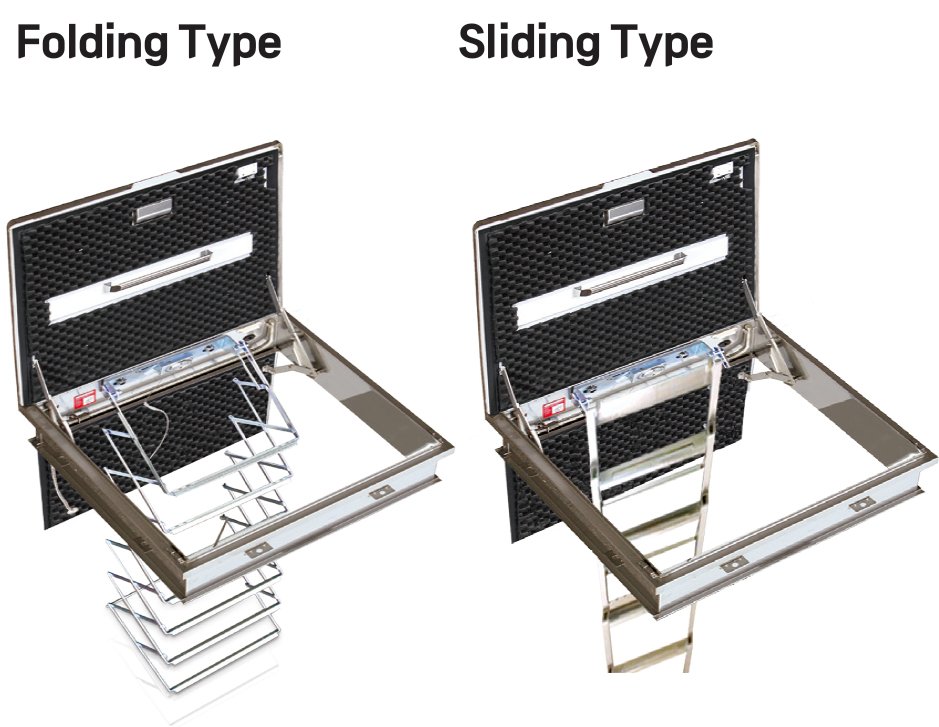

Main body
(Folding)

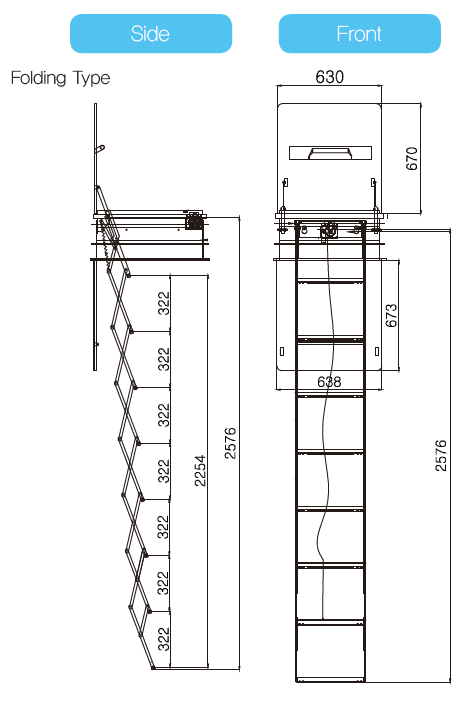

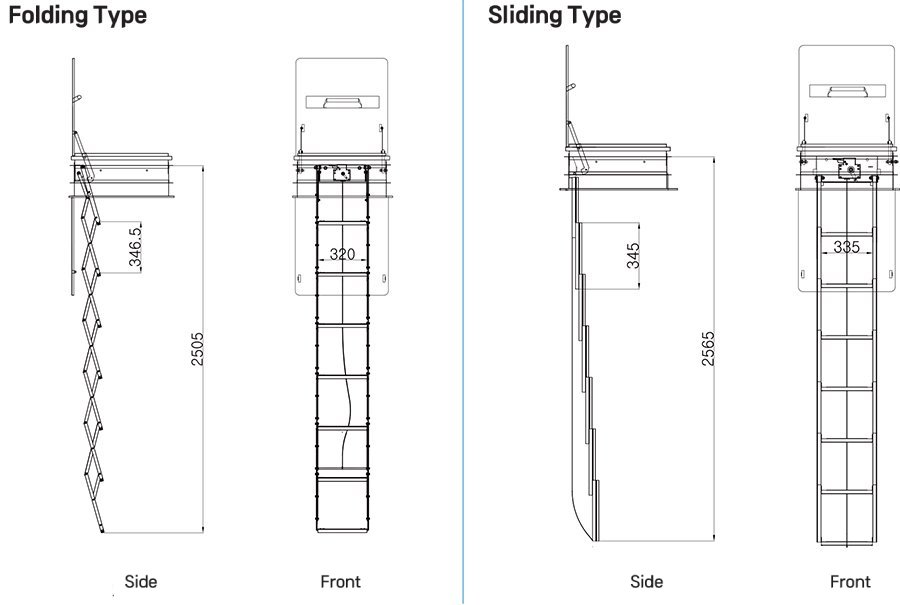

STEP Interval 346mm
STEP Width 320mm
Material Iron (hot rolled steel) Galvanized, Chromium
Main body
(Sliding)

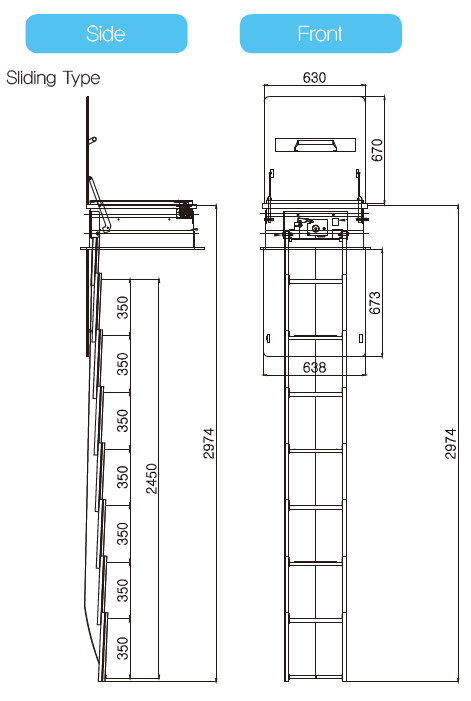

STEP Interval 345mm
STEP Width 335mm
Material Aluminum
Standard
Type Form Height(mm)
Standard
Outer Diameter : 650(W)×680(L)
or
Outer Diameter : 640(W)×675(L)
2480 ~ 3300
High building
Outer Diameter : 655(W)×800(L)
Outer Diameter : 655(W)×910(L)

3310 ~ 4900
4910 ~ 6200

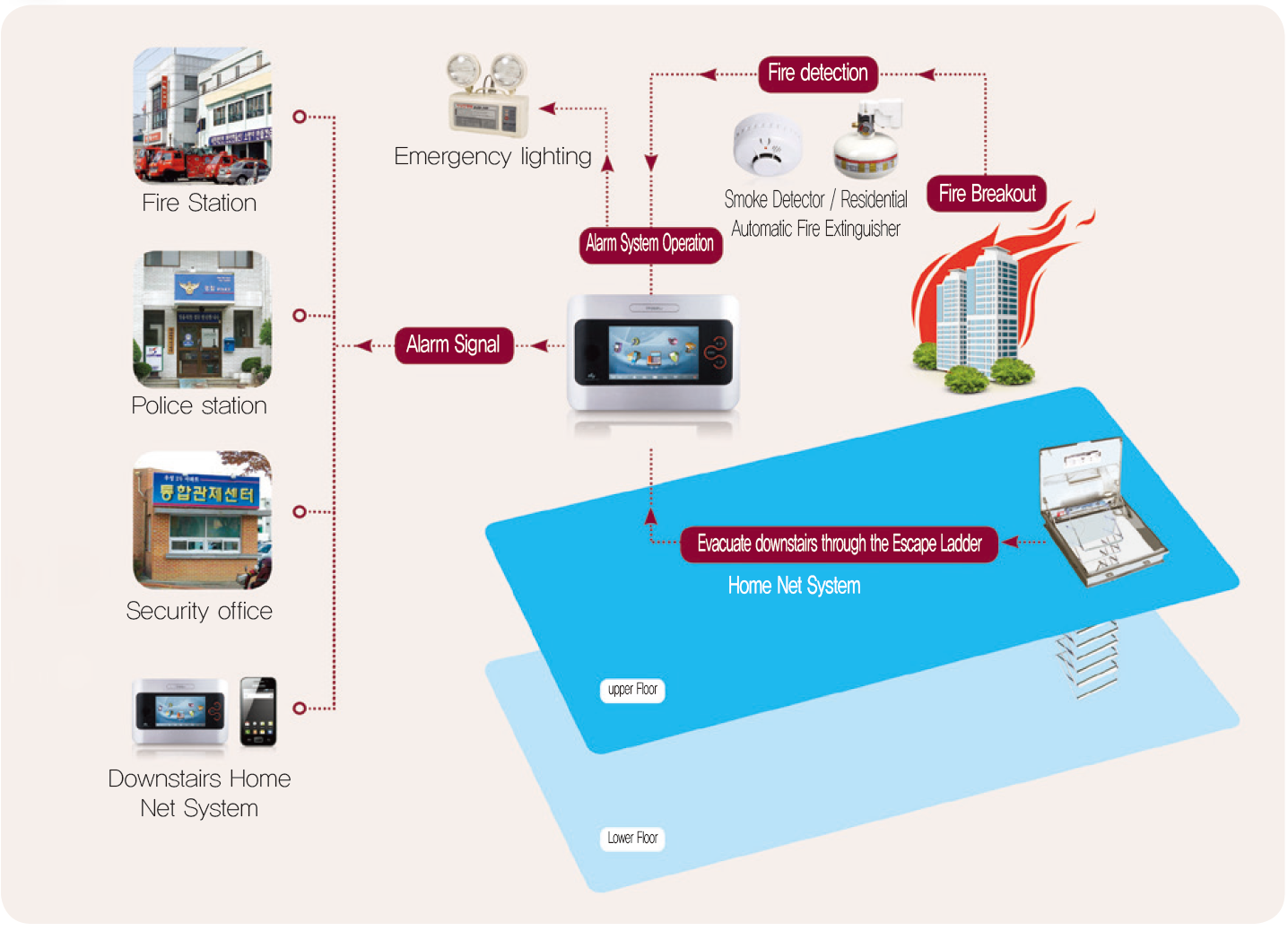

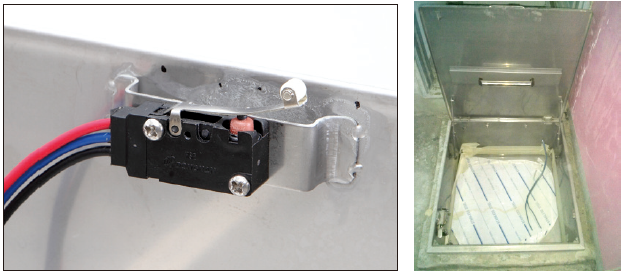

Interworking with home network system

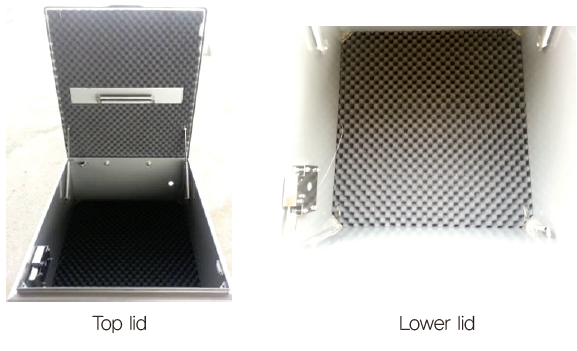

Product Features
Opening an Evacuation Ladder

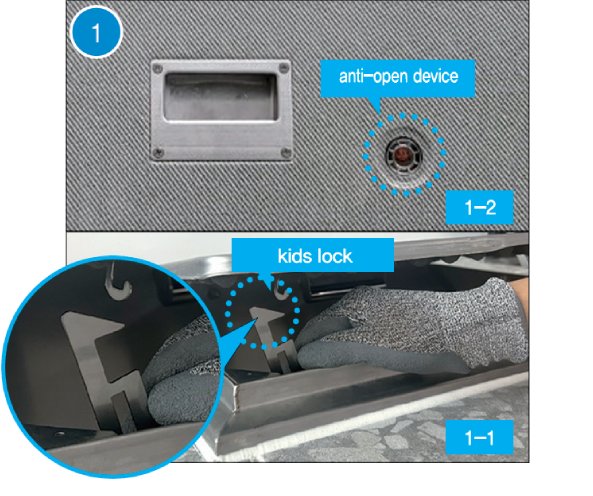

  1. 1-1 Partially open the top cover and release the kids lock.

    1-2 Press the anti-open device and open the top cover.

  2. Open the top cover at least 90 degrees and make sure there are no people or objects downstairs.

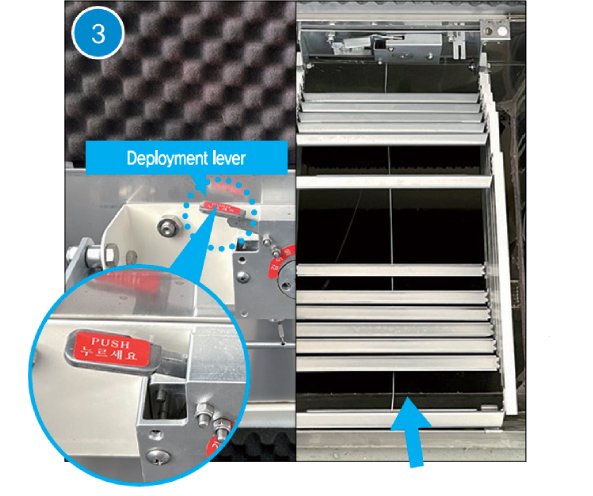

  3. Press the deployment lever to lower the ladder.
    (Push down the ladder in the direction of the arrow and press the deployment lever.)

  4. Make sure the joint is fully secured and hold the attached handel and evacuate downstairs.

Folding an Evacuation Ladder

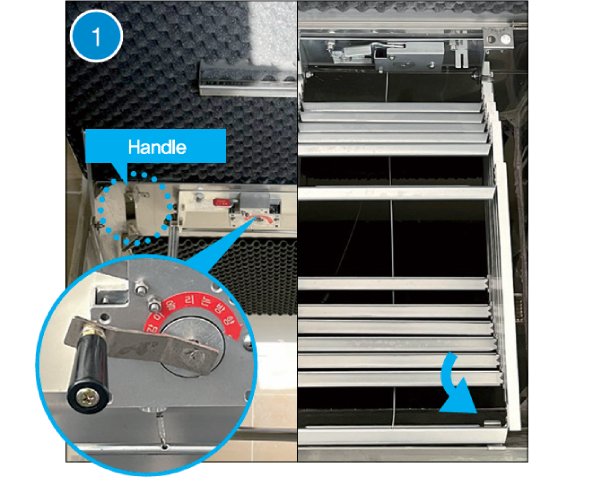

  1. Put the provided handle on the shaft and turn it to wind up the ladder.
    (After winding it up, lift the ladder and hang it on the holder.)

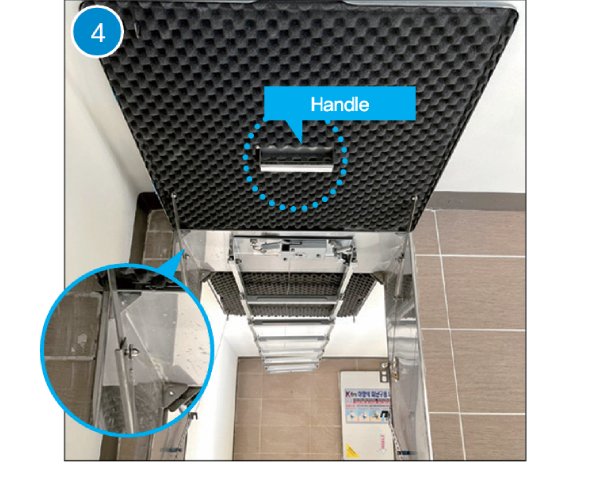

  2. Slowly lower the upper cover while pulling the fixed joint forward.

  3. Make sure that the bottom cover is also closing.

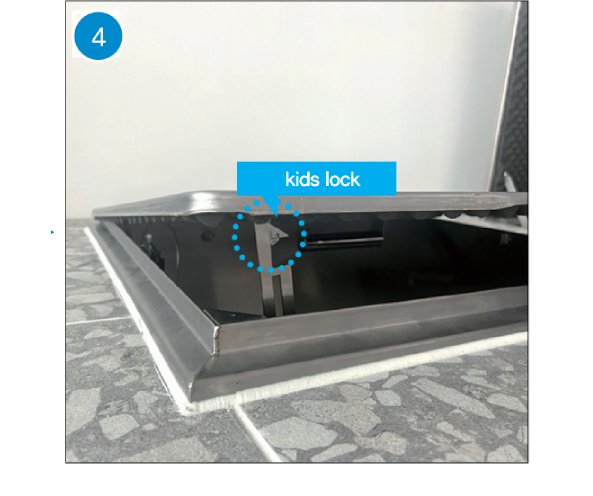

  4. After hang and close the kids lock before closing the top cover.

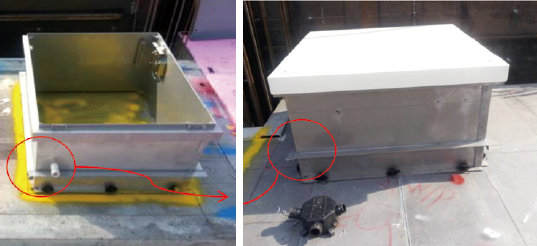

Upper finish form

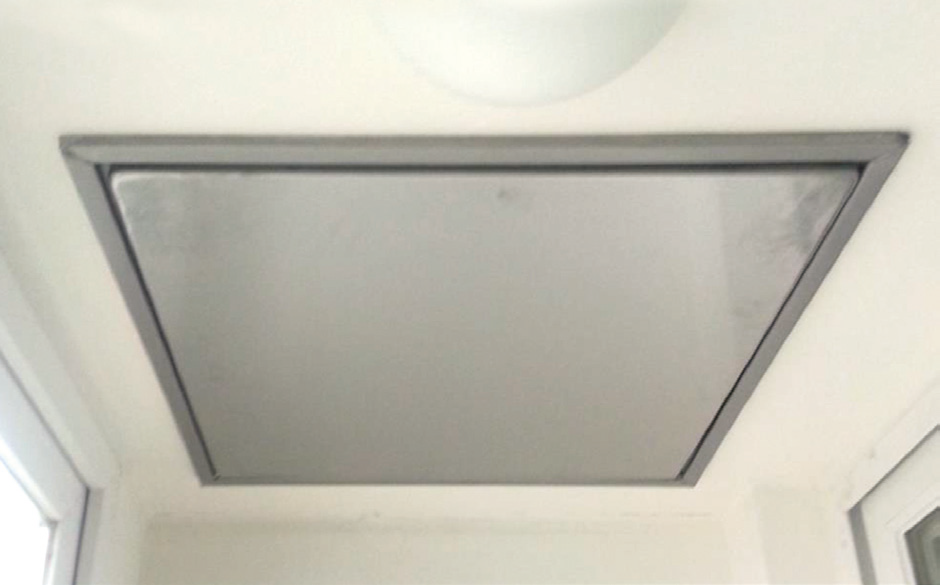

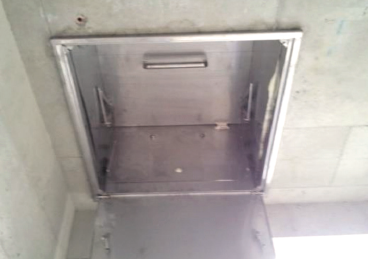

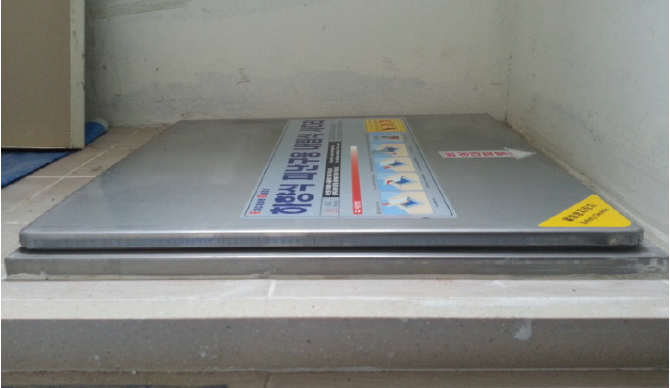

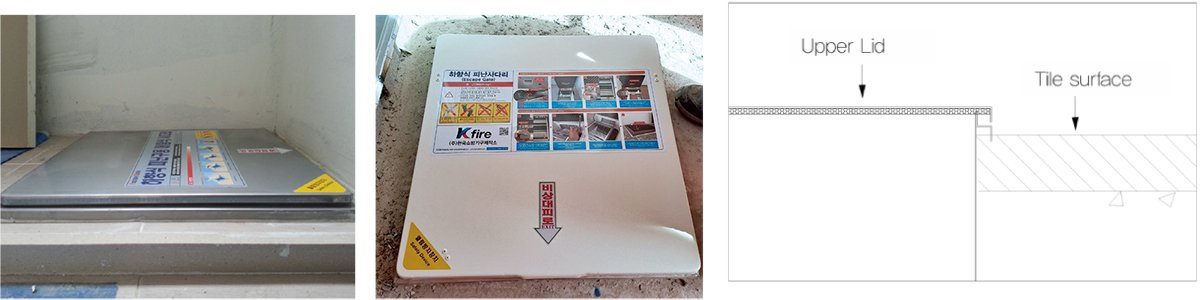

1. Protruding type (protruding 2~3 cm from the finish surface)

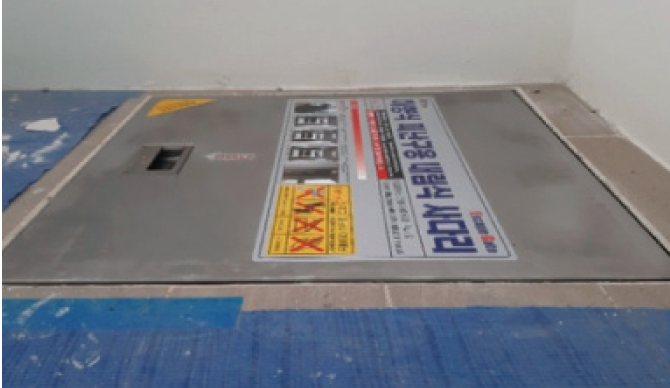

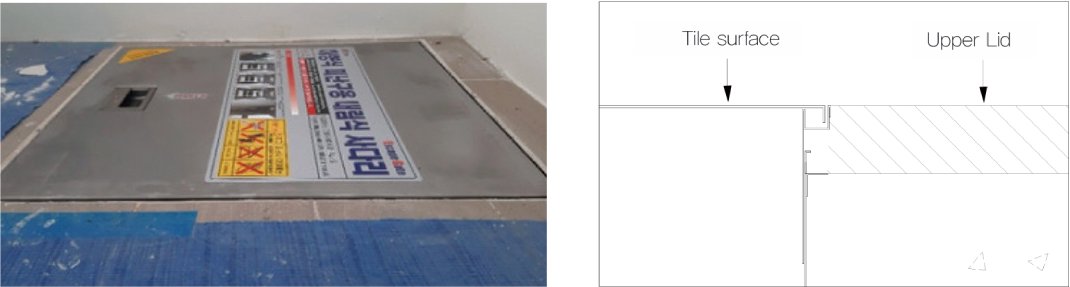

2. Same type of floor (matching level with finish)
Lower Finishing Process

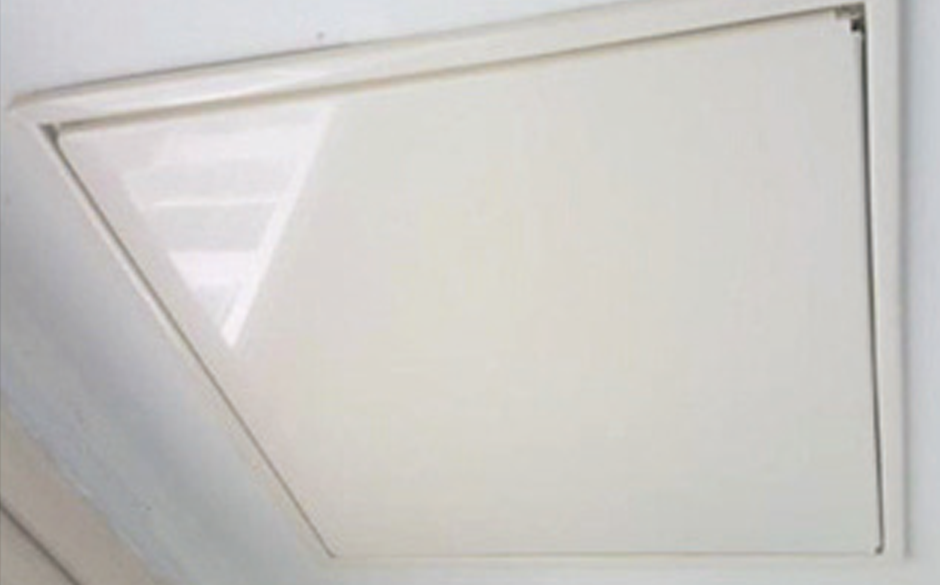

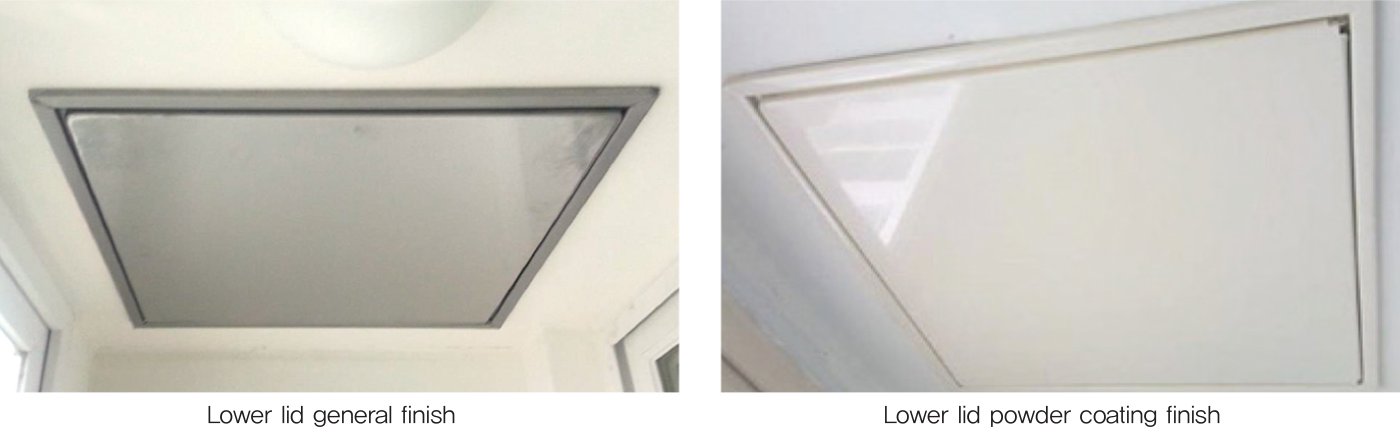

Can be painted in a color similar to the ceiling color (Having powder coating lines in the factory)

Material SUS 304
Thickness 1.2t
Features Integrated with the ceiling, the finish is clean
Sub-finish option

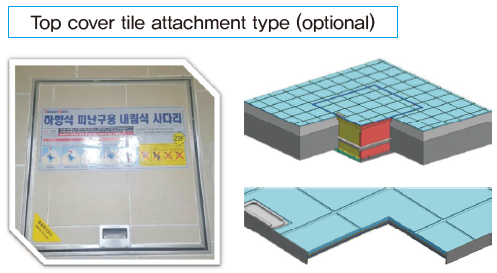

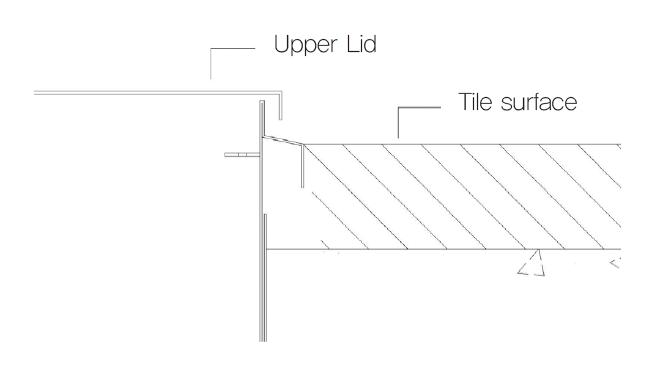

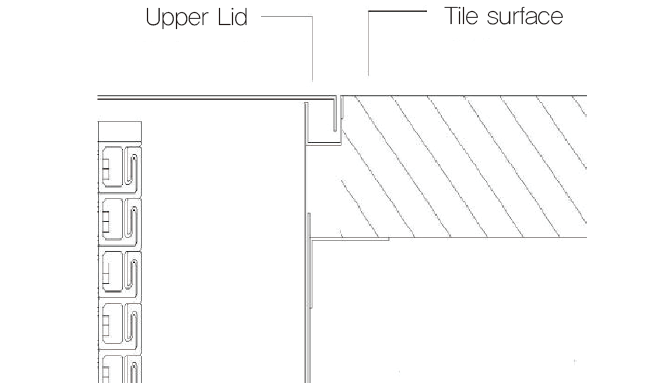

Top cover tile attachment type (optional)

- The top hatches finish exactly like the floor tiles, so the look is clean
- It is a type that directly constructs tiles on the upper part of the hatch, and there is a concern that the tiles may fall or be damaged in the future.
- Since the upper lid due to tile construction is heavy, it may be difficult for the elderly and children to use

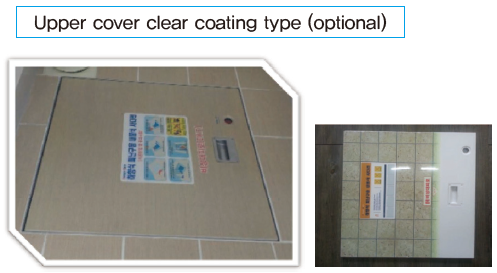

Upper cover clear coating type (optional)

- After printing on the upper cover with the same color and pattern as the floor (tile), clear coating is applied so as not to peel off to maintain.
- After the primary powder painting, the cost becomes expensive because it is printed at 5 degrees, and the coating liquid is sprayed and baked again on it is baked.
- Since it is printed, there is a limit to accurately match the color of the tile.

Other Options

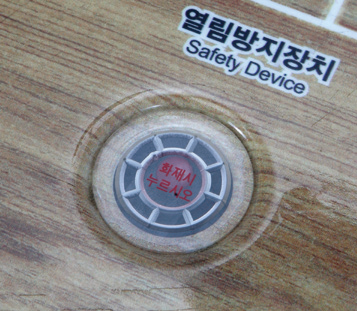

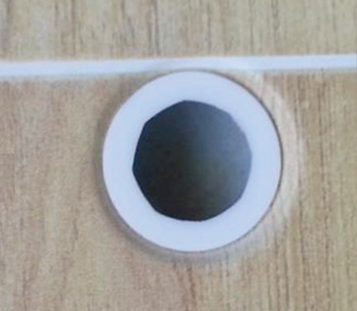

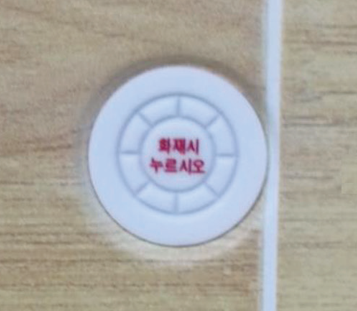

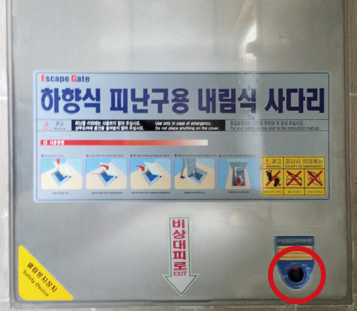

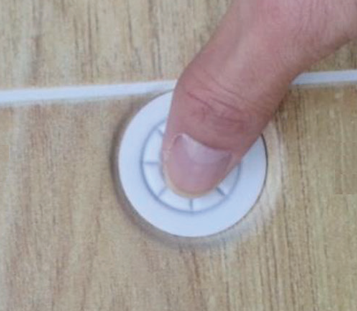

Acrylic Emergency Open Button

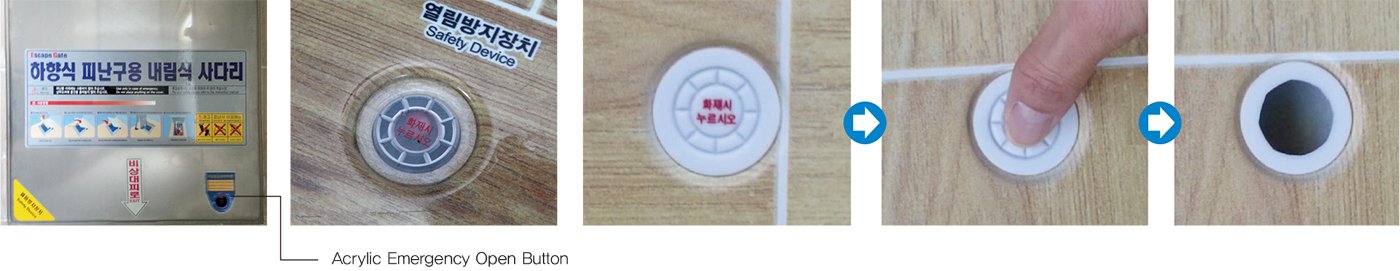

It is installed by attaching a lock to prevent invasion of privacy, and in case of an emergency, if you press the upper acrylic with your hand, the acrylic is damaged and the lower opening device button is pressed to open it.

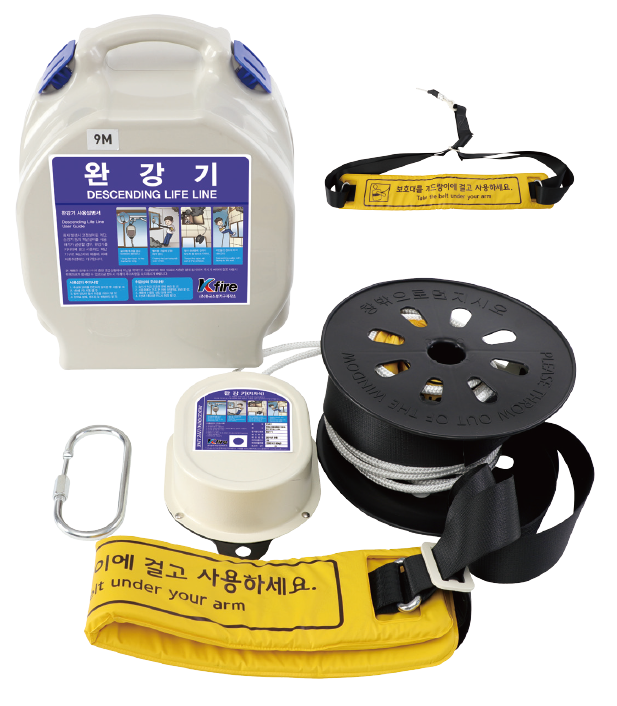

Descending Life Line
In case of a fire or an emergency situation, the device makes a user descend automatically by him /her weight, hung to the support.
Specifications
Type No. 완 21-1 / 25-1
Tensile Strength of Belt and Rope 900 ~ 1,000㎏
Maximum Service Load 150㎏
Maximum Number of Users 1Person
Descending Speed 16㎝/s ~ 150㎝/s
Type
Model Floor Level Length(m) Weight(㎏)
HKDD-2 2F 6 5.80
HKDD-3 3F 9 6.02
HKDD-4 4F 12 6.24
HKDD-5 5F 15 6.46
HKDD-6 6F 18 6.68
HKDD-7 7F 21 6.90
HKDD-8 8F 24 7.12
HKDD-9 9F 27 7.34
HKDD-10 10F 30 7.56
HKDD-11 11F 33 7.78
HKDD-12 12F 36 8.00
HKDD-13 13F 39 8.22
HKDD-14 14F 42 8.44
HKDD-15 15F 45 8.66

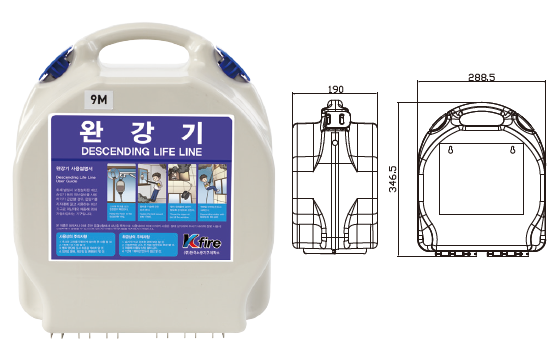

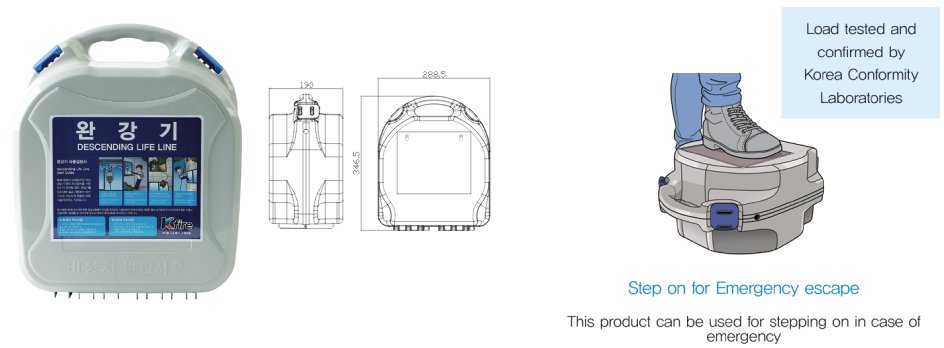

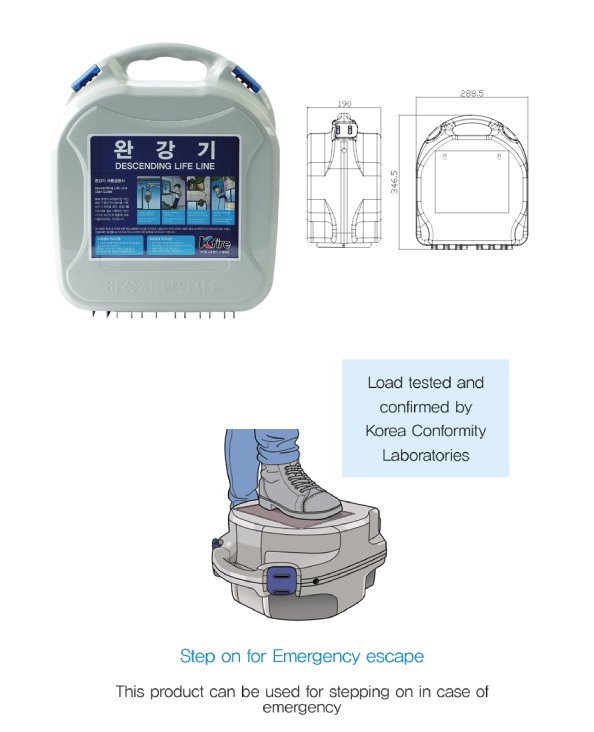

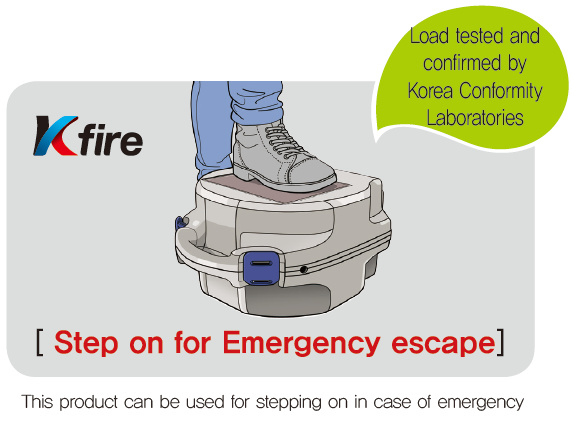

Slow Descending Device Case - For Stepping
Load test detail

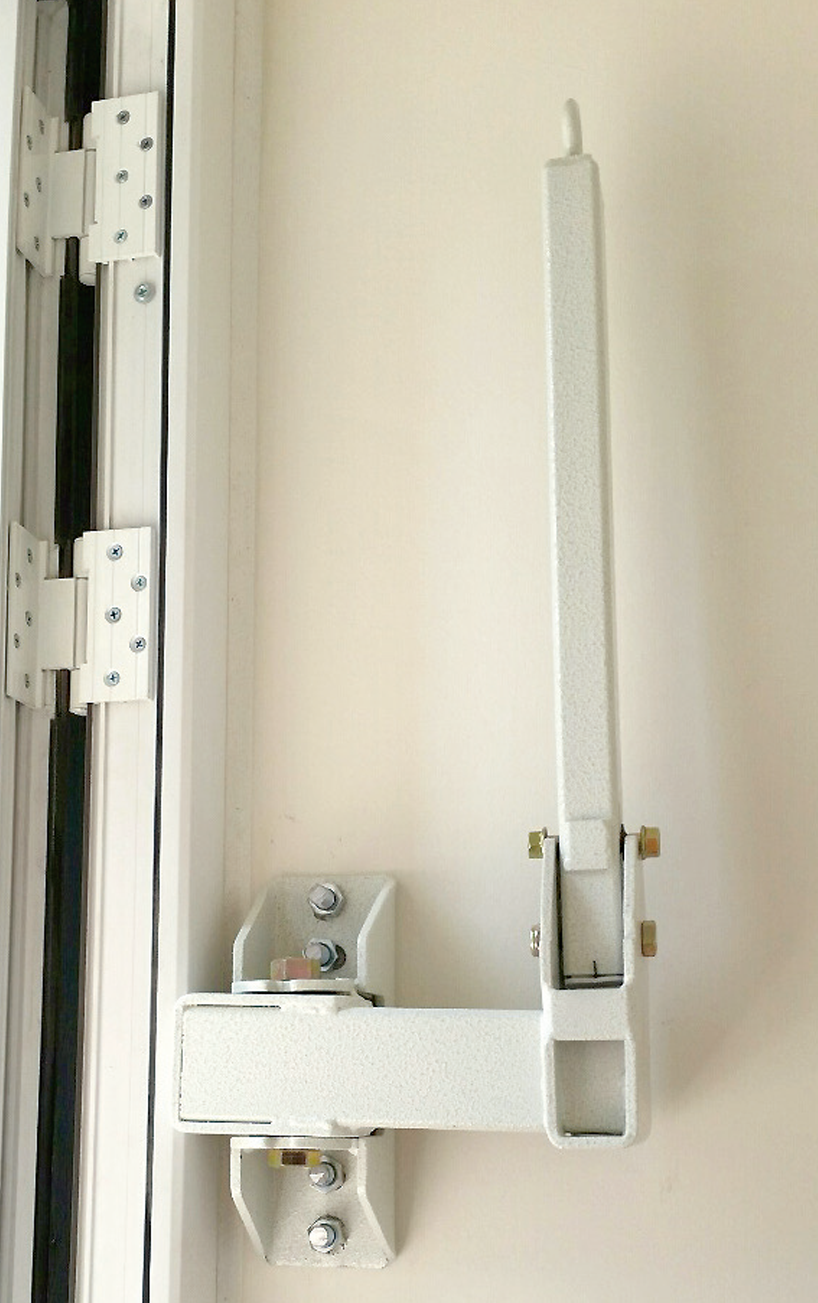

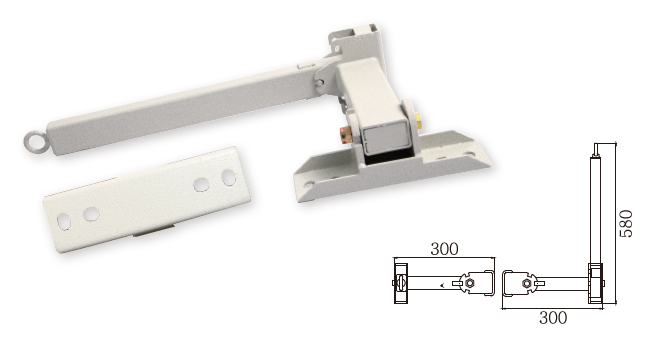

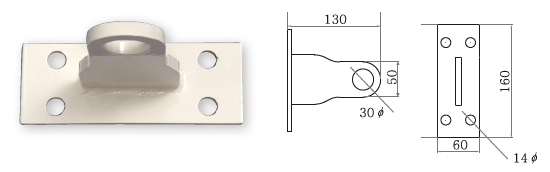

Inside Wall Attachment Type 2-Stage Support
A Type

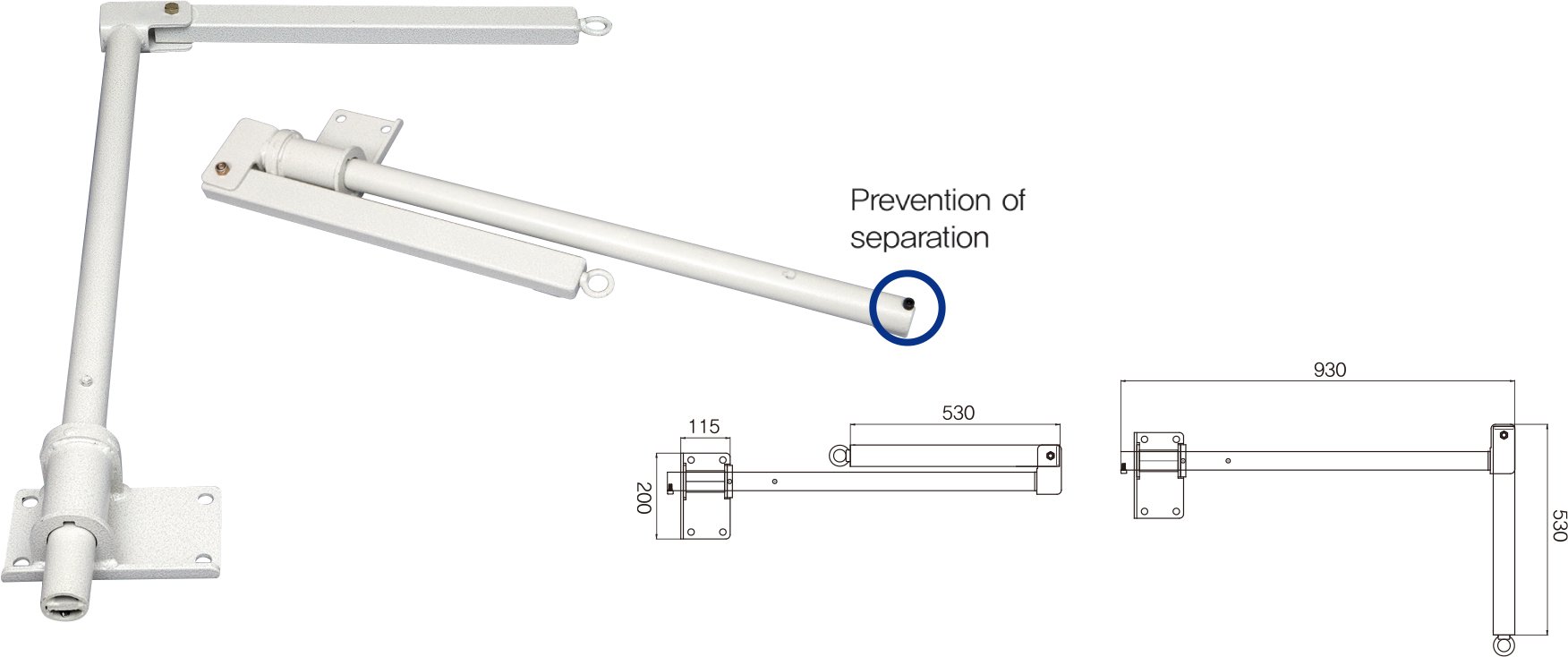

Type Inner wall-mounted two-stage support
Type Approval 지지19-1
Quality of the Material KSD 3503(SPHC)
Weight 5.5㎏
Maximumnumber of users 1person
Maximum used load 150㎏
Angle of rotation 150degree

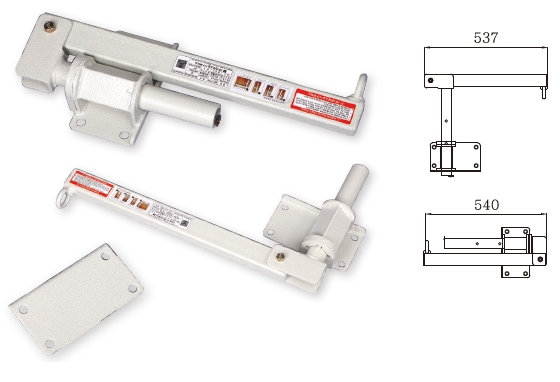

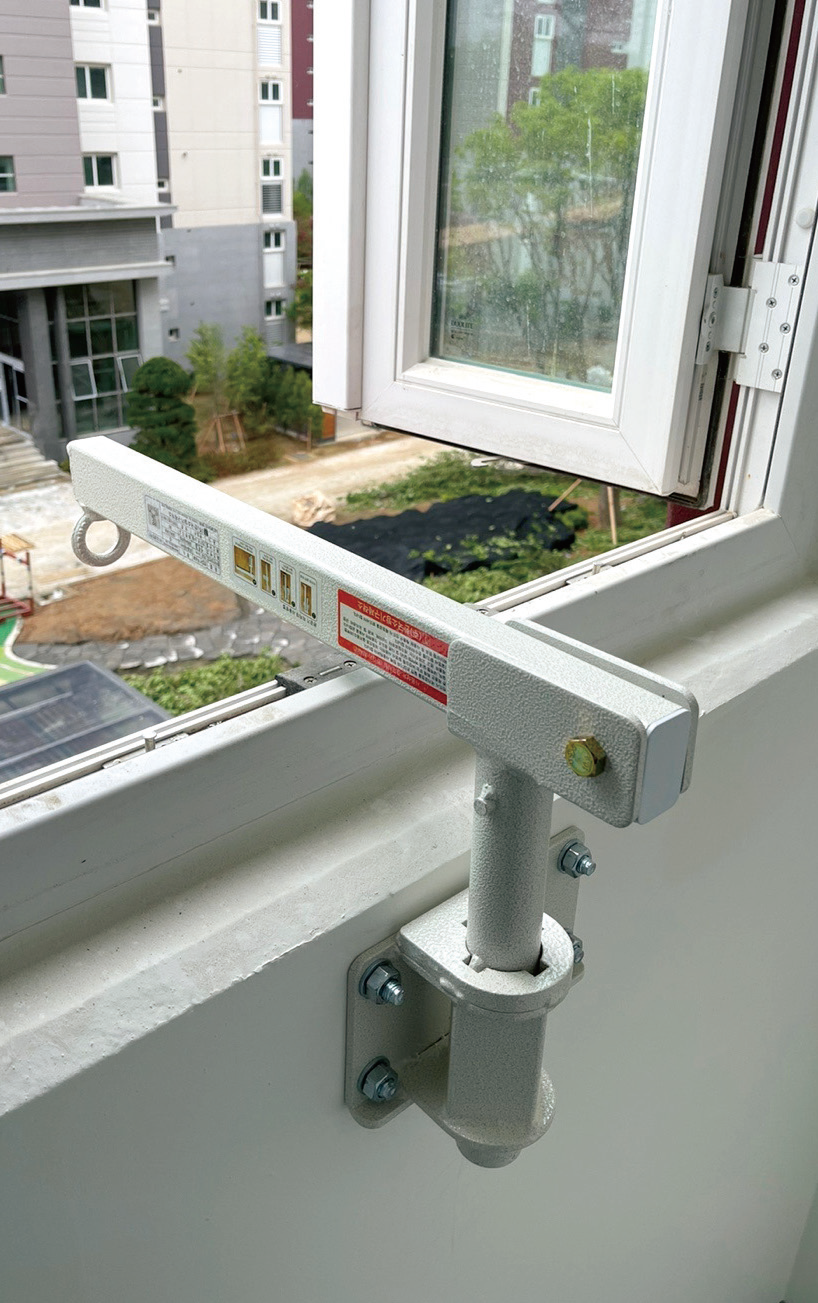

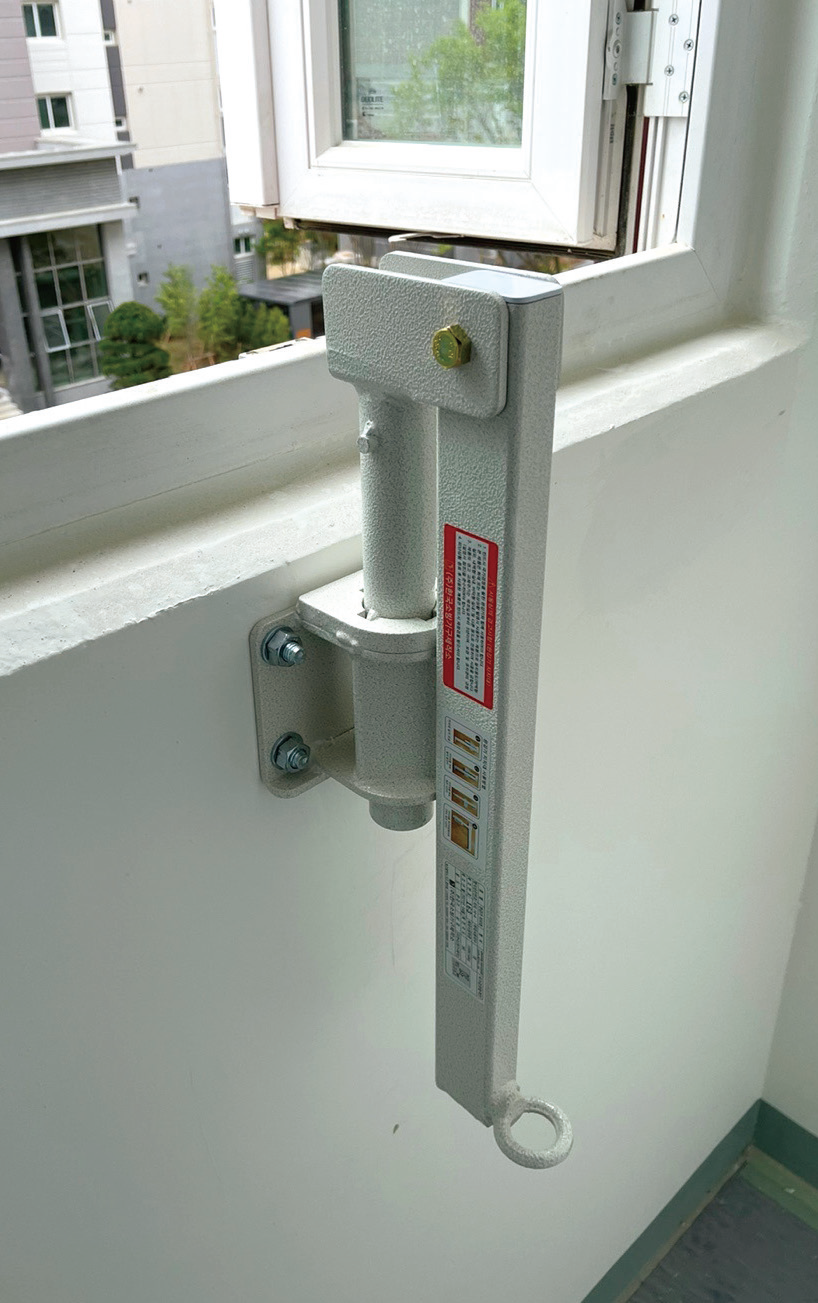

Lower Wall Attachment Type Support
LH Type
Type Lower Wall Attachment Type Support
Type Approval 지지15-16, 지지 23-3
Quality of the Material KSD 3503(SS400)
Weight 10.5㎏
Maximumnumber of users 1person
Maximum used load 150㎏
Angle of rotation 360degree

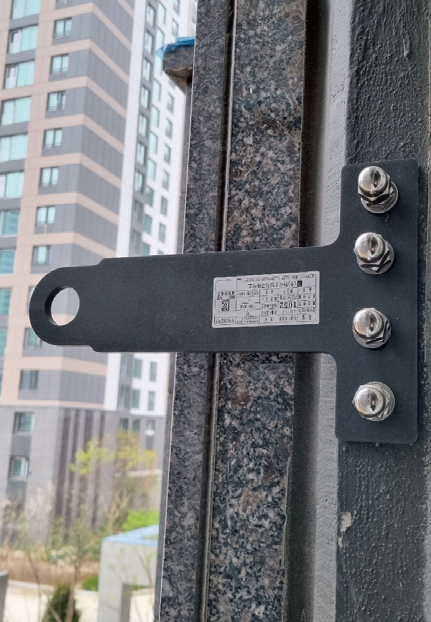

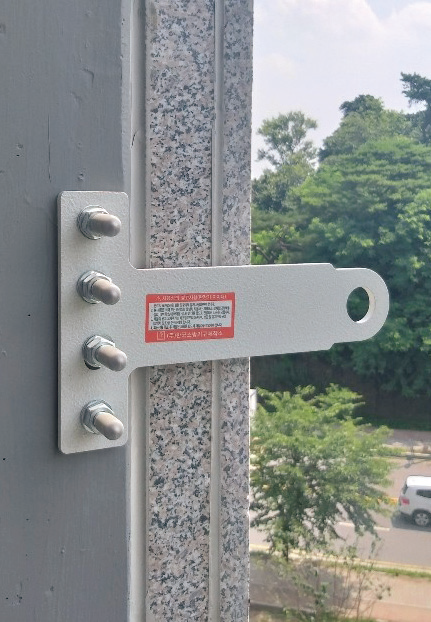

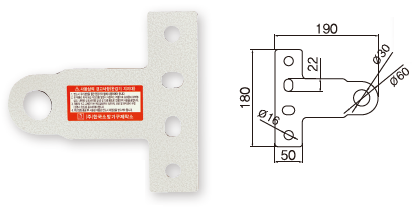

Outside Wall Attachment Type Support
Type Outside Wall Attachment Type Support
Type Approval 지지15-13
Quality of the Material KSD3698 (SUS304)
Weight 0.86㎏
Maximumnumber of users 1person
Maximum used load 150㎏

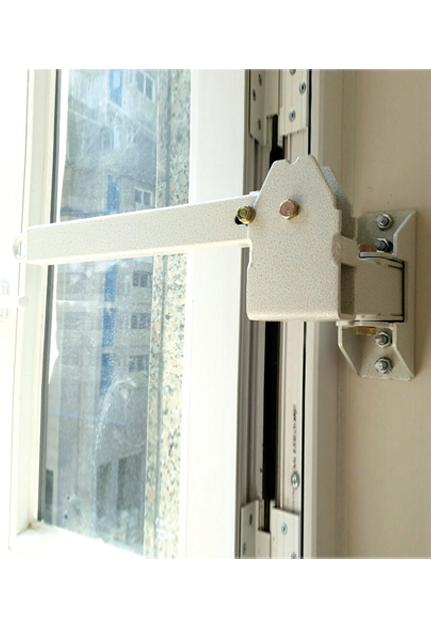

Type Outsider Wall Attachment Support
Type Approval 지지17-1
Quality of the Material KSD3698 (SUS304)
Weight 0.89㎏
Maximumnumber of users 1person
Maximum used load 150㎏

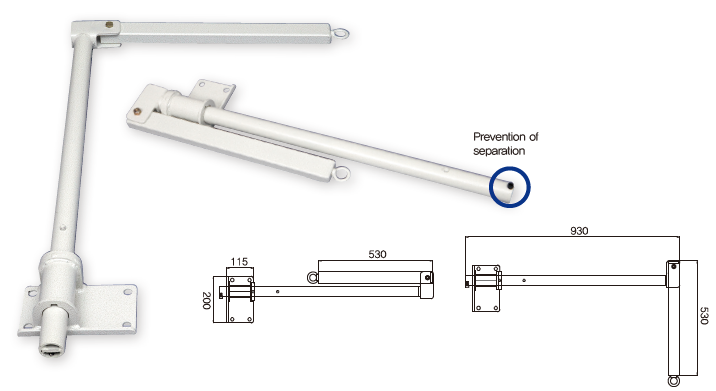

Painted Color of External Bracket Ivory, Dark navy blue, Dark gray

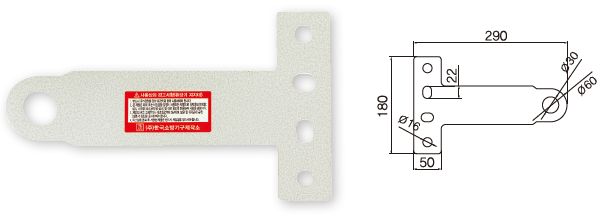

Type Outsider Wall Attachment Support
Type Approval 지지17-2
Quality oft he Material KSD3698 (SUS304)
Weight 1.29Kg
Maximumnumber of users 1person
Maximum used load 150㎏
Painted Color of External Bracket Ivory, Khaki, Brown
Hose Reel Drum set
Fire Hose
Jacket (Outer Layer)Polyester
Lining (Inner Layer)Polyurethane
Working Pressure7kg /cm2
Test Pressure15kg /cm2
Length15m, 20m, 25m, 30m
ColorRed, White
Drum
Size Ø550X130(15, 20, 25m)
Ø600X130(30m)
Material SS400(Powder Coated)

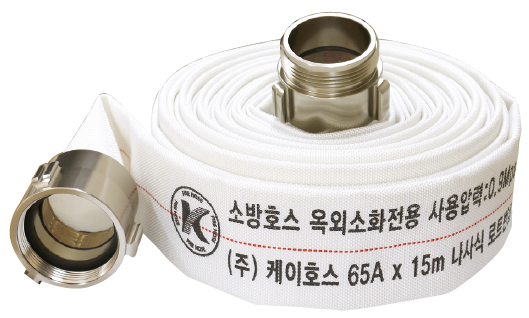

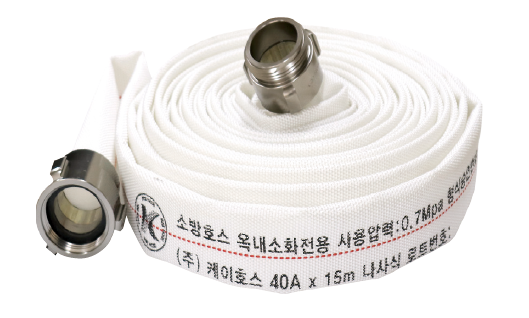

Fire Hose

Type

Contents

Urethane embedded hose

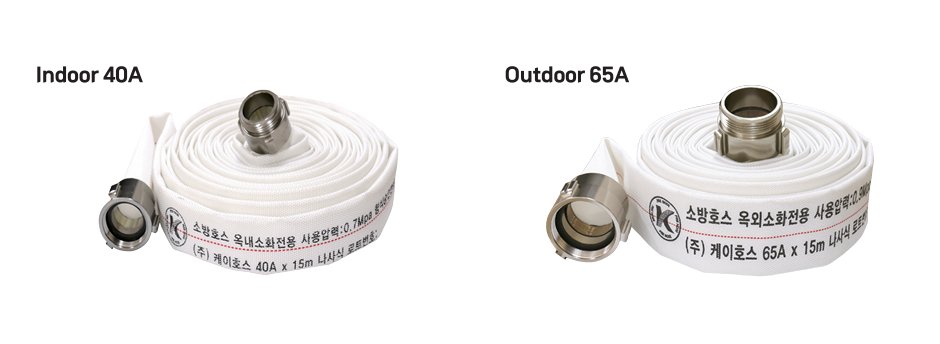

40mm(Indoor) 65mm(outdoor)
Type Approval 호19-10 / 호19-10-1 호19-10 / 호19-15-1
Breaking pressure 3.4㎫ 3.6㎫
Weight(g/m) 140 180
Thickness 0.4mm 0.4mm
Rate of elongation 0.5% 0.75%
Tensile Strength before Inner Lining ages 52㎫ 54㎫
Elongation rate before Inner Lining ages 430 435
Features of K hose
· Internal and burst pressure is high
· Recovery of elasticity is quick
· It has good abrasion resistance, anti-aging resistance and is easy to use.
· The elasticity of the lengthside is less and the changes of warp is less.
· Acid resistance,corrosion resistance and tension are high
· Heat resistance, cold resistance, light weight, and small volume

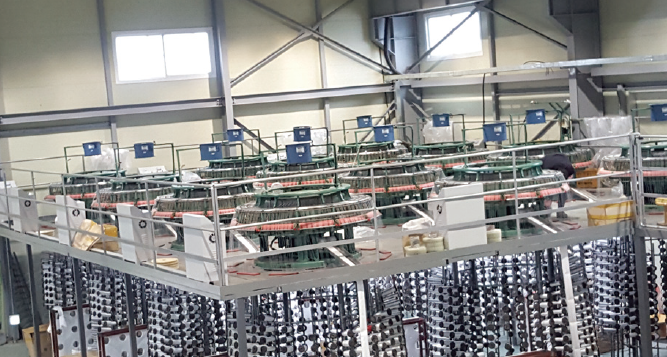

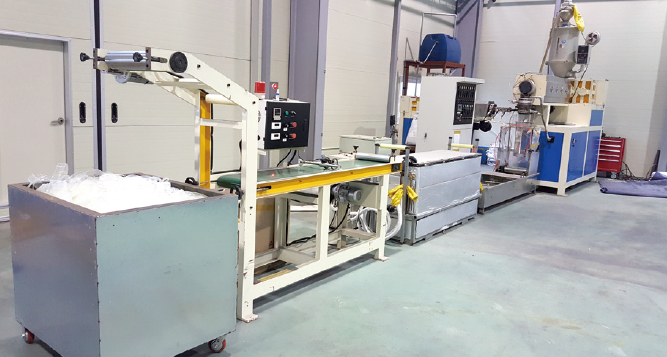

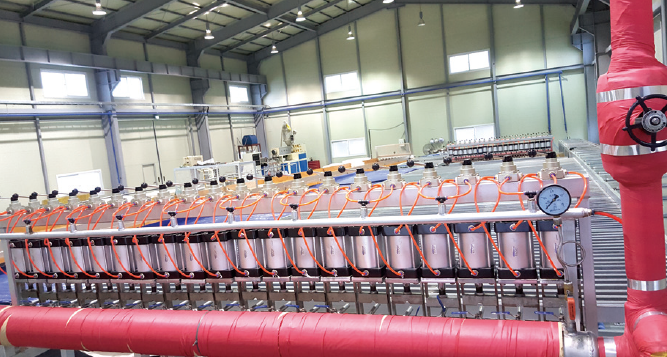

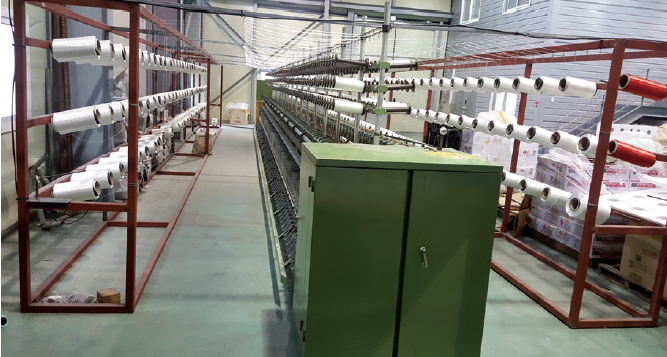

Domestic Production Facility Photographs
Fire Hose Nozzle

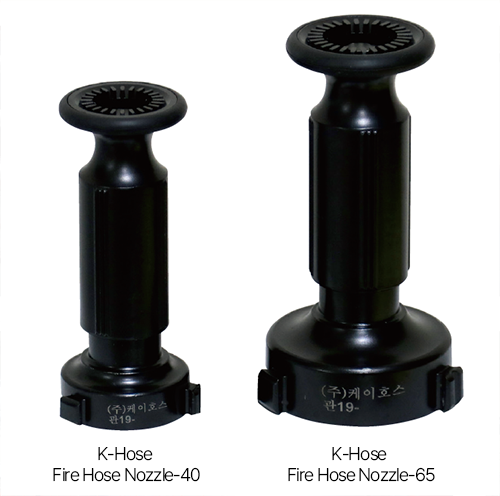

Left: K-Hose Fire Hose Nozzle-40 / Right: K-Hose Fire Hose Nozzle-65
Type classification Radial discharge and use of hydrant fire
Type Approval 관 22-1, 관 22-2
Maximum Operating Pressure 14㎏/㎠
Ending pressure 20㎏/㎠
Main Material Aluminum
Product use
It is an outlet for discharge water by connecting to fire hoses of indoor and outdoor fire hydrants. It is made of aluminum, which is light in weight, and has excellent fire extinguishing effect and cooling effect as an equipment that can be freely selected as direct and radial.

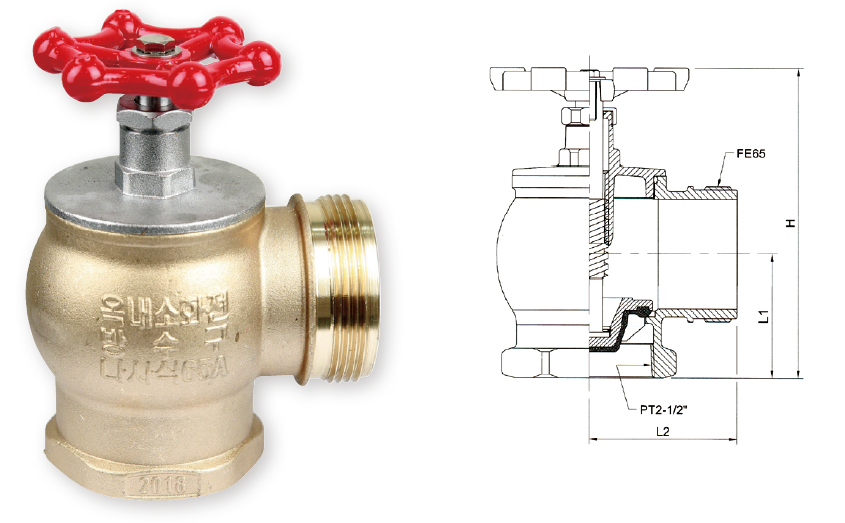

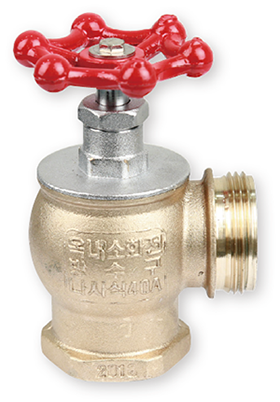

Angle Valve
Model Inlet Outlet size Test pressure Material Weight Approval
H L1 L2
HK-IF40 PT40 FE40 148 53 57 2.0MPa BRONZE 1.28 KFI Certification
HK-IF65 PT65 FE65 180 72 85 2.0MPa BRONZE 3.15
